Products
Specification

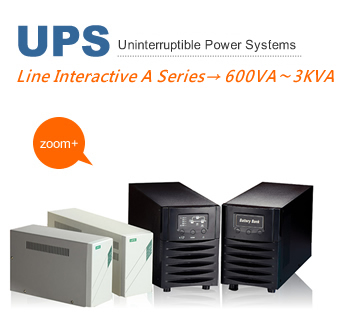

Model   NS-A601 NS-A102 B-152 B-202 B-302
Capacity VA/W 600VA/360W 1000VA/600W 1500VA/900W 2KVA/1200W 3KVA/1800W
Input Voltage 110/115/120VAC or 220/230/240VAC
Voltage Range 83VAC~143VAC or 166VAC~286VAC
Frequency 47HZ~53HZ or 57HZ~63HZ

Output

 Voltage 110/115/120VAC or 220/230/240VAC±10%
Frequency 50HZ or 60HZ±1HZ
Waveform Simulated sine-wave
Transfer Time <4ms
Outlets NEMA5-15R*2pcs or the other type NEMA5-15R*6pcs or the other type
Battery Battery Voltage 12Vdc 24Vdc 48Vdc
Battery Type High Rate 12V/5AH 12V/4AH High Rate 12V/5AH High Rate 12V/9AH
Battery Quantity 1PCS 2PCS 4PCS
Back-up Time
(Load with 1 PC)		 15mins 40mins 60mins 90mins 120mins
Recharge Time 8 hours to 90% after fully discharged
Function Line Conditioning
Regulation(AVR)		 1 step Boost/1 step Buck
LED Display 1 LED: Normal(steady on)
Back up(slow blinking)
Battery low(fast blinking)
Overload/Short/UPS
Cut-off(LED off)		 10LEDs: Normal(Green)
Back up(Green)
AVR on(Orange)
UPS cut-off(Orange)
Over heat(Red)
         Battery level(5LEDs)
Alarm Buzzer on for Back-up mode, Battery low Buzzer on for Back-up mode ,
Battery low , over-heat
Auto Alarm reset No Yes
DC start(Cold start) Yes
Auto Restart UPS Yes
Output Auto Delay No Yes
Overload/Short Protection Circuit Breaker(Line mode), Fuse and electronic Circuit(back-up mode)
Lightning/Surge Protection 350J/10000A
Communication Port(DB9) RUPS-2000 software for windows 95/98/NT/2000/ME/XP/Vista
UPS For Elevator No Yes
Environment Operation Temperature 0℃~40℃
Relative Humidity 0%~95%(non-condensing)
Audible Noise <40dBA(at 1M) <50dBA(at 1M)
Physical Net weight(kgs) 6.5 11.5 17.6 20.3 UPS:14KGS Bat.Bank:14kgs
Dimension:
WxDxH(mm)		 94×266×170 94×385×170 160×410×236 160×410×236
(2sets)



◢Feature

  ▪ Full low frequency working, no interference to your equipment
Free of any high frequency transforming power circuit and won’t cause any high frequency disturbance.
 		   ▪ With mute switch
Mute switch for 1.5 KVA and above capacities allowing
switching off warning sound at power off.
  ▪ Built-in AVR offering wider applications
Built-in AVR function provides automatic when the mains is too high or too low-extra protection to your equipment.
 		   ▪ Lightning surge protecting device
It has surge protection device and can effectively absorb 4500 A (8/20μs) and can effectively reduced the damage of thunder strike.

  ▪ With battery start function
When external power is off, internal battery can be applied to start machine.
 		   ▪ Incorporated with DB9 communication interface
It offers possibility of installing monitoring software to set saving and turning off.

  ▪ With overload and short circuit protection
It has overload protecting device is capable of cutting off power supply upon overload and short circuit.
 		   ▪ With auto-restart function
When UPS off and power is supplied by internal battery, UPS will be off automatically when battery energy is exhausted.  And when mains is resumed, UPS will re-start automatically.

  ▪ Multiple audio warning functions
At UPS off, battery low, both overload and short circuit protecting device will have different warning sound.
 		   ▪ Custom long time discharge model acceptable
If long time discharge needed, we can accept custom order and can also add large current charging board to short battery recharge time.

  ▪ Containing various LED indicating functions
For unit of 1.5KVA capacity or higher, the unit has LED 5 indicating functions, including normal, battery discharge, AVR actions, turning off, overheating and battery power indication.
 		   ▪ With large starting current suitable for elevator of each brand
This series has other elevator specific model with larger starting current and output is available 5 seconds after power off and with dry contact signal of power off and machine turning off.




◢Application

Personal Computer , IT Equipment , Document Control , Work Station , Audio/Video Room , Sales Management System
