Specification
Regulated method Using TRIAC to adjust voltage (with 6 sections)
Input voltage range  ± 15%
Input power factor 0.98~1
Input frequency 47~63Hz
Output regulation +5%~ -1.5% (no load),+3.2%~ -2.5%(full load)
Distortion No distortion(the same as input waveform)
Response time ≤5 cycles
Efficiency ≥96% at full load
Overload capacity 200% for 10 seconds`
Protection device Auto-delay start function (time can be set),output cut off (input over/under
voltage, overload, short ), overheat alarm, surge suppressor, maintenance
by-pass switch
Audible warning Input over voltage, input under voltage, overheat
Indictor Input power on, input over voltage, input under voltage, overheat
Meter Output voltmeter (output ammeter is optional)
Safety Standary CE
Operation temperature 0~40℃
Humidity 0~90% (non-condensing)

SB Series : Single phase
Model Capacity Input/Output voltage Dimension (WxDxH)mm
SB-110 10KVA SB-1□□-1→1Φ2W 100V、110V、115V or 120V
SB-1□□-2→1Φ2W 200V、220V、230V or 240V
SB-1□□-3→1Φ3W220V/110V、230V/115V or 240V/120V
SB-1□□- I→build isolation transformer		 SB-1□□-2
SB-1□□-3
SB-110-I		 385×530×505
SB-115 15KVA
SB-120 20KVA
SB-125 25KVA SB-115-I
SB-12□-I
SB-130-I		 405×557×927
SB-130 30KVA

<
SB Series : Three phase
Model Capacity Input/Output voltage Dimension (WxDxH)mm
SB-310 10KVA SB-3□□-3→3Φ3W 200V、220V、230V or 240V
SB-3□□-4→3Φ4W190V/110V、208V/120Vor 380V/220V
SB-3□□- I→build isolation transformer
SB-3□□-A→build auto transformer		 SB-3□□-3
SB-3□□-4		 385×530×505
SB-315 15KVA
SB-320 20KVA
SB-325 25KVA SB-3□□-I
SB-3□□-A		 405×557×927
SB-330 30KVA
SB-345 45KVA
SB-350 50KVA

※Specification is subjected to change without notice .

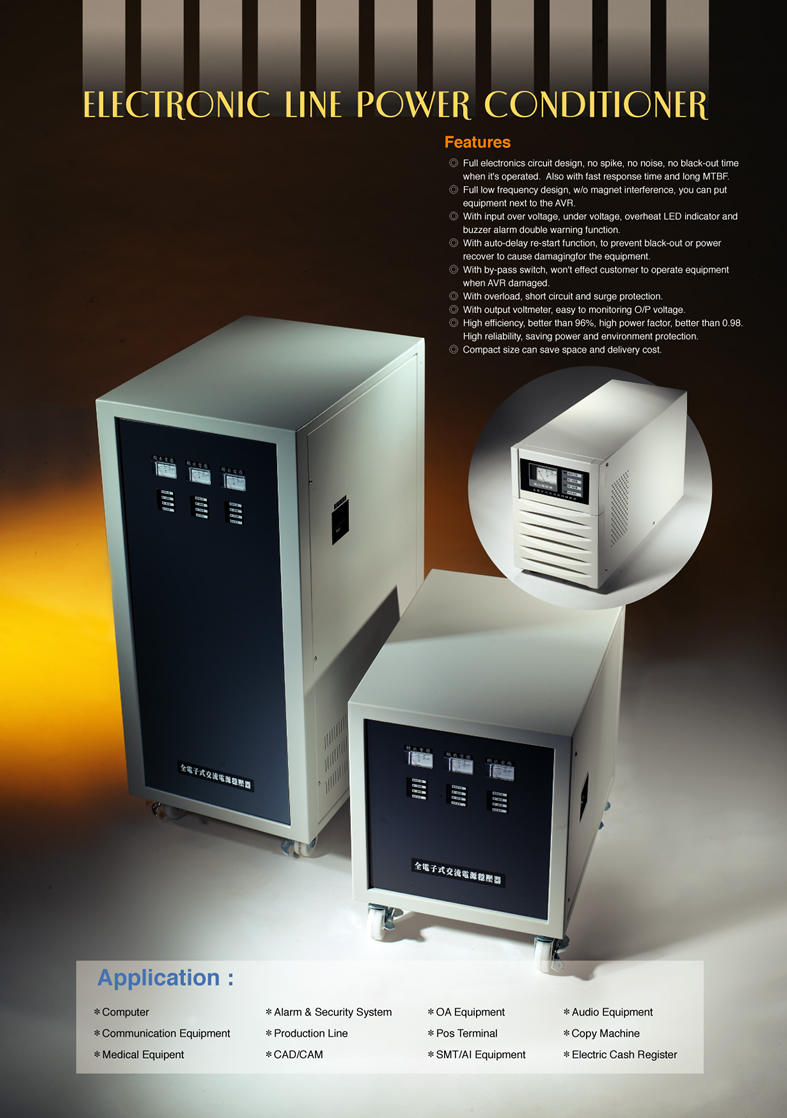

◢Feature

  ▪ Full electronics circuit design, no spike, no noise, no black-out time when it’s operated. Also with fast response time and long MTBF.
 		   ▪ Full low frequency design, w/o magnet interference. You can put equipment next to the AVR.

  ▪ With input over voltage, under voltage, overheat LED indicator and buzzer alarm, have double warning function.
 		   ▪ With auto-delay re-start function to prevent black-out or power recover to cause damage for the equipment.

  ▪ With bypass switch, won’t effect customer to operate equipment when AVR damaged.
 		   ▪ With overload, short circuit and surge protection.

  ▪ With output voltmeter, easy to monitor O/P voltage.
 		   ▪ High efficiency, better than 96%, high power factor, better than 0.98, high reliability, saving power and environmental protection.

  ▪ Compact size can save space and delivery cost.



◢Application

Computer, Alarm & Security System , OA Equipment , Audio Equipment , Communication Equipment ,Production Line , Pos Terminal , Copy Machine , Medical Equipment , CAD/CAM , SMT/AI Equipment, Electric Cash Register
